Product features
- SATA data & power connectors for high-speed, stable transmission
- Custom pin counts, configurations and OEM/ODM versions available
- High-quality contacts and plating; RoHS-compliant materials
- Built to consistent factory quality with full traceability
Specification overview
| Interface / standard | Serial ATA (SATA) |
|---|---|

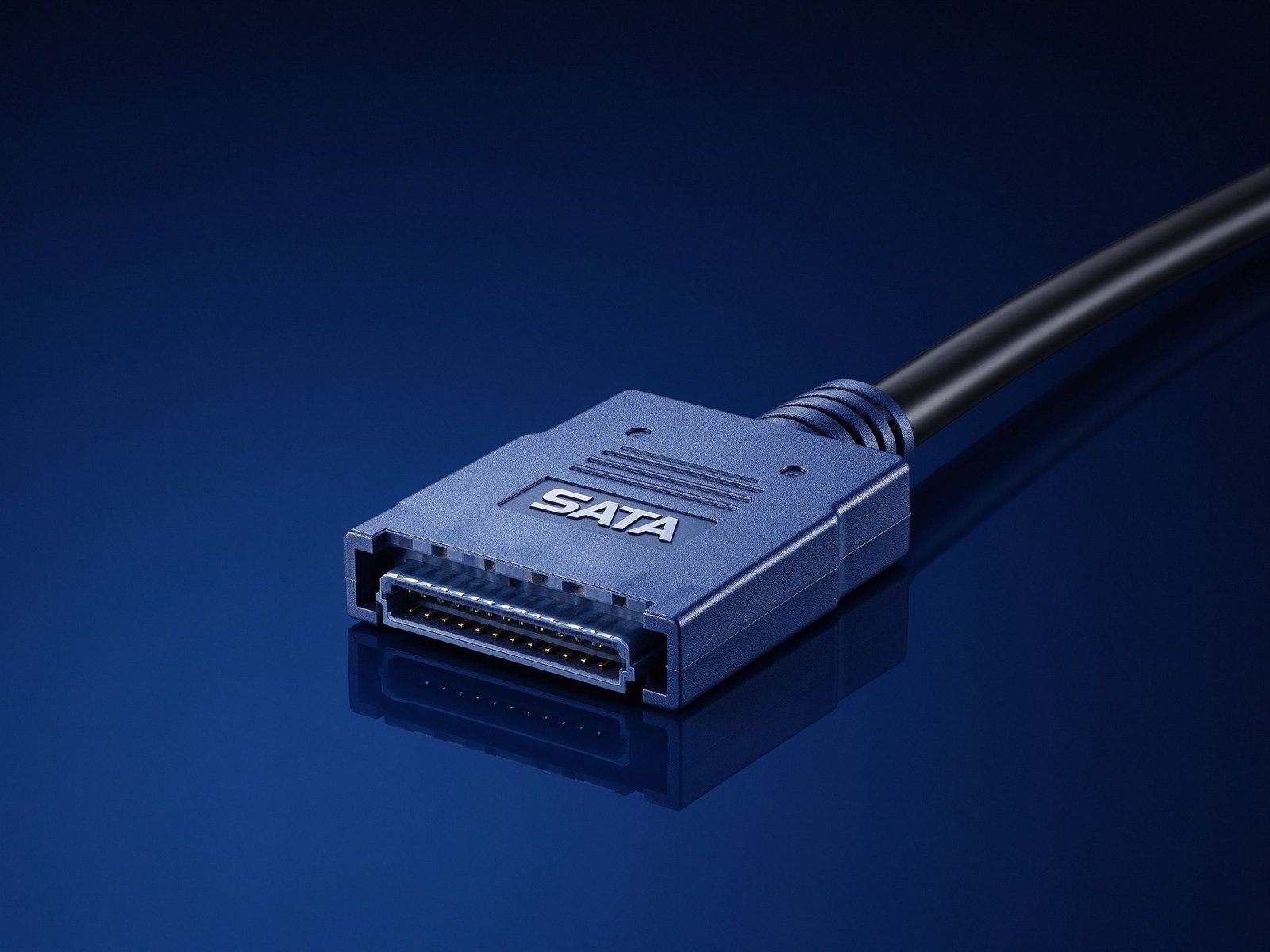

| Product type | SATA data / power connector |
| Protocol | SATA 1.5 / 3.0 / 6.0 Gbps (SATA-IO) |
| Pitch | 1.27 mm (0.050 in) |
| Pin / position count | 7 + 15 pins (22) |
| Mounting options | SMT / right-angle / vertical |
| Current / voltage rating | 1.5 A data; +3.3 / +5 / +12 V power |
| Housing material | High-temp plastic (PA / LCP) |
| Contact / plating | Copper alloy, gold / tin plating |
| Customization | Port count, stacking, shielding |
| Certification | RoHS / REACH |
| Samples / lead time | Samples available on request |
Applications
Frequently asked questions
1. What is the minimum order quantity (MOQ)?
The MOQ depends on the specific model and version. Contact us with the part and your quantity for confirmation.
2. Do you provide free samples?
Samples are available on request. Please send us your model, quantity and application so we can arrange them.
3. Can you make custom / OEM versions?
Yes. We support OEM/ODM with custom pin counts, configurations, plating, wire length and packaging.
4. What certifications do you have?
Our products are RoHS / REACH compliant; UL certification is available on request.
5. What is the production lead time?
Lead time depends on the quantity and configuration. We will confirm the schedule with your order.
6. How do I get a quotation?
Use the contact form or email us directly with the product model, quantity and application, and we will reply with a quote.
Request a quote or samples
Tell us the quantity, application and any custom requirements — we'll reply with specs and pricing.
